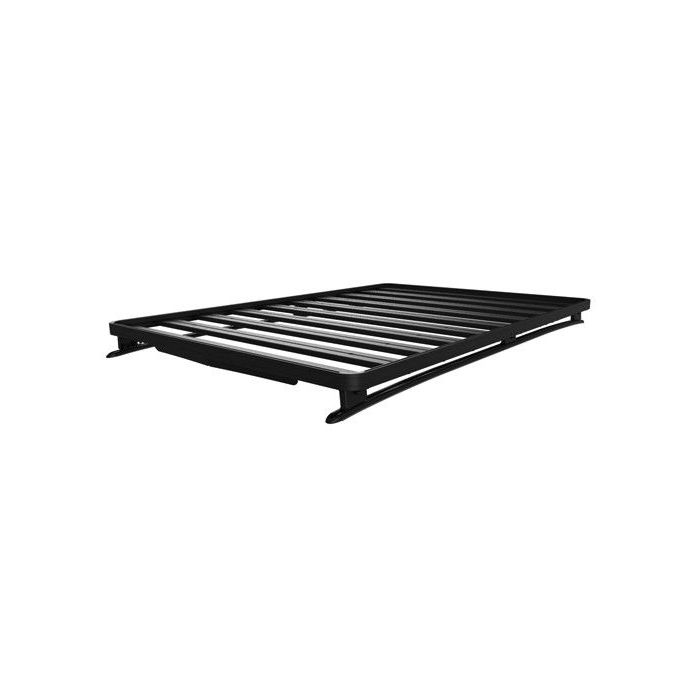

Front Runner Suzuki Grand Vitara (2007-2014) Slimline II Roof Rack Kit
- Biedt extra opbergruimte
- Mogelijkheid om verschillende accossoires op te monteren
Heeft u vragen over dit product? We helpen u graag!
Gegevens
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
All Front Runner Racks are backed by a Limited Lifetime Warranty*
For further information on installation, please see the fitment instructions in the INSTALL tab.
Specificaties
Consisting of:
1 x FASS012 - Foot Set / 40mm-50mm - by Front Runner
2 x FASS013 - Foot Set / 60mm-70mm - by Front Runner
1 x RRSTD09 - Slimline II Tray - 1255mm(W) X 1762mm(L) - by Front Runner
1 x TRSV001 - Suzuki Vitara Tracks / 1850mm(L) - by Front Runner
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel
Approximate Installed Weight 29kg (63lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Width 450mm (18")
Length 1615mm (64")
Height 140mm (6")
Shipping Weight:
Weight 33.3kg (73.3lbs)
Installatie
